Setting up SQL Server Alerts and Email Operator notifications

Problem:

Setting up an alert to e-mail an operator with a message is a multiple step process. You can setup database mail, define an operator and an alert, but still no e-mail is being sent. So how do you send an alert to an operator?.

Solution:

Note: This solution involves restarting SQL Agent.

Database Mail:

First setup database mail with a profile named SQLAlerts. The profile can be named anything but in these instructions, the profile name SQLAlerts is referenced. If you wish to use a different profile name just substitute accordingly. For procedures in setting up database mail.

Define Operator:

Connect to the instance using Microsoft SQL Management Studio Double Click SQL Server Agent

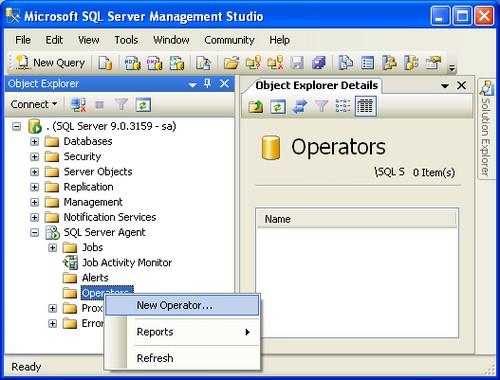

Right Click on Operators and select New Operator

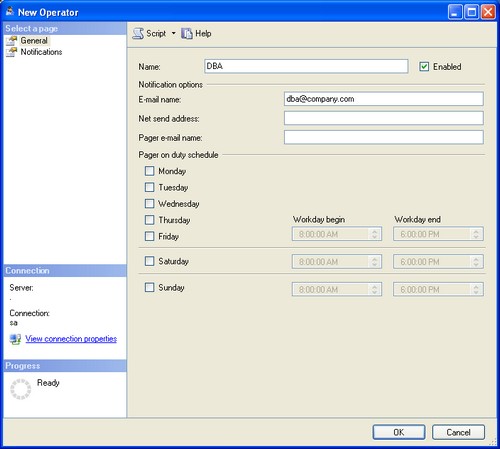

Specify an operator Name, E-mail name, and click OK

Setup SQL Agent Settings:

Note: This step is often overlooked when creating an alert for the first time. SQL Agent must be setup correctly for operators to receive an alert e-mail.

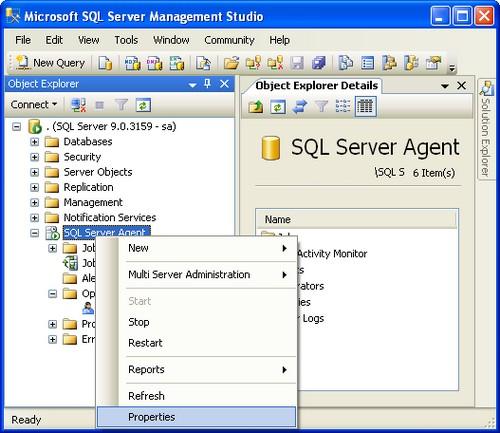

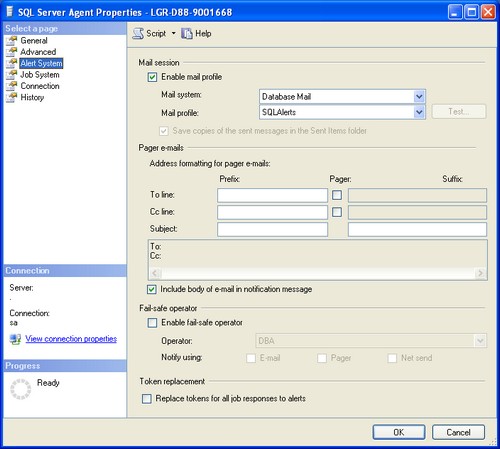

Right Click SQL Server Agent > select Properties

Select Alert System in the left pane

Checkmark > Enable mail profile

Verify Mail system: Database Mail

Verify Mail Profile: SQLAlerts

Checkmark > Include body of e-mail in the notification message

Click OK.

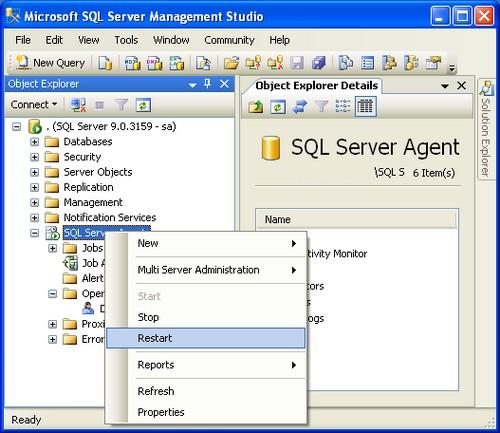

Restart SQL Agent to activate settings.

Warning: Restarting SQL Agent will cancel any executing jobs.

Define Alert:

This sample alert will send an email when TEMPDB database gets larger than 0 KB. This setting is set zero so the alert can be tested. Once verified, you will need to update its settings to a reasonable amount or disable it.

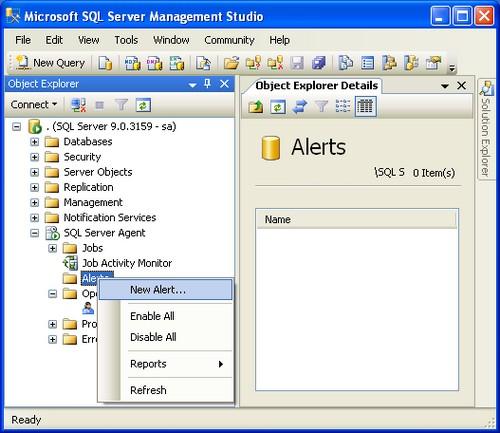

Right Click Alerts and select New Alert

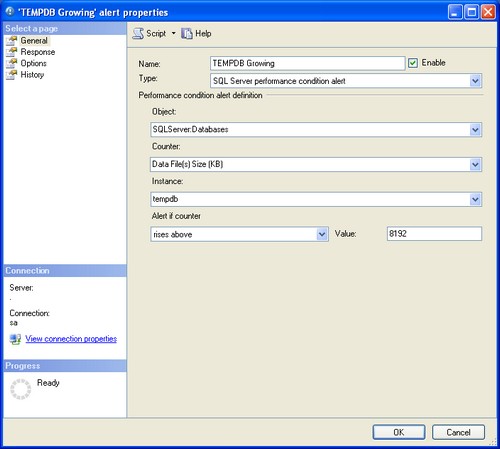

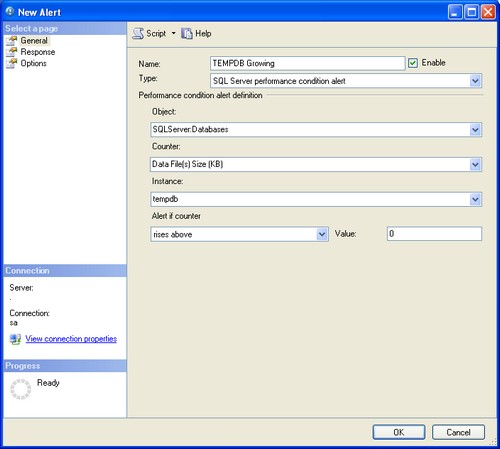

On the General pane specify

Name: TEMPDB Growing

Type: SQL Server performance condition alert

Object: SQLServer:Databases

Counter: Data File(s) (KB)

Instance: tempdb

Alert if counter: rises above

Value: 0

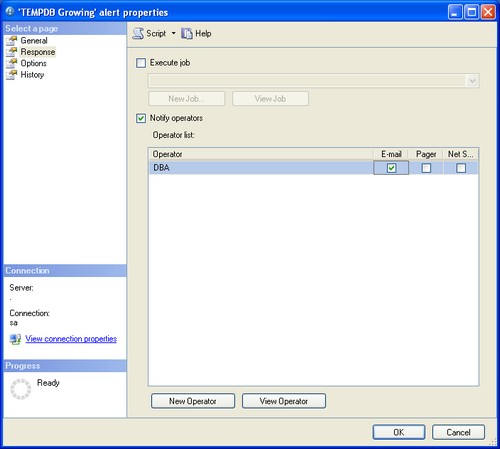

Click Response in left pane

Checkmark > Notify operators

Checkmark > E-mail for the operator

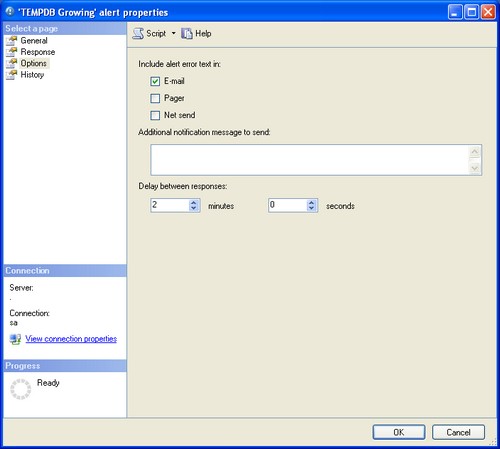

Click Options in left pane

Checkmark > Include alert error text in E-mail

Delay between response: 2 minutes

Click OK

Verify Alert is Working:

The operator should receive an e-mail if not see the troubleshooting section.

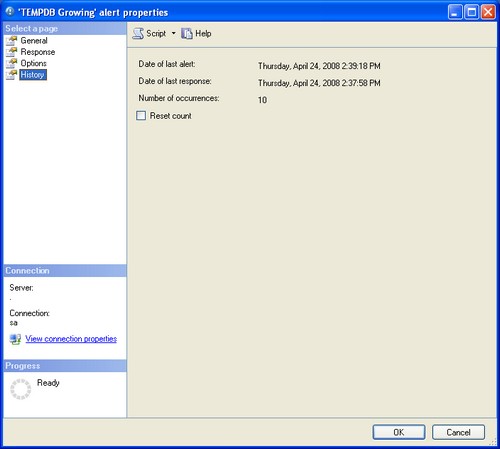

Open the Alert. Click History in the left pane.

The fields are updated when the alert is triggered.

Stop the test:

To stop the Alert from being sent every two minutes, you have two options disable the alert or provide a more appropriate size and response times.

To disable alert

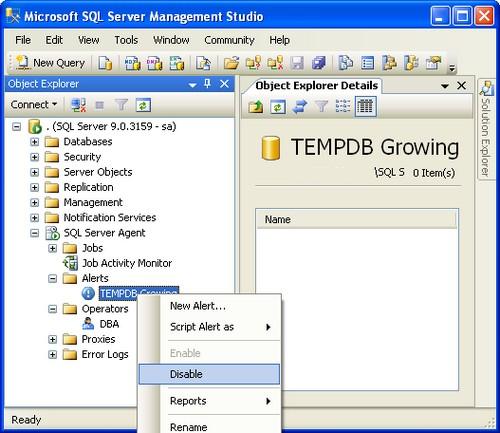

Click General in left pane and remove the checkmark from Enable and click OK OR Right click on Alert name and select Disable

To change the settings

Click General in left pane

Change value to value larger than existing TEMPDB database file save. The current file size is included in the e-mailed alert.

Click Options in left pane

Change response to 720 minutes which is 12 hours

Click OK

Troubleshooting:

If the operator does not receive an e-mail

Test database mail by sending a test e-mail to the operator's e-mail address. Make sure you restarted SQL Agent and it is running.
